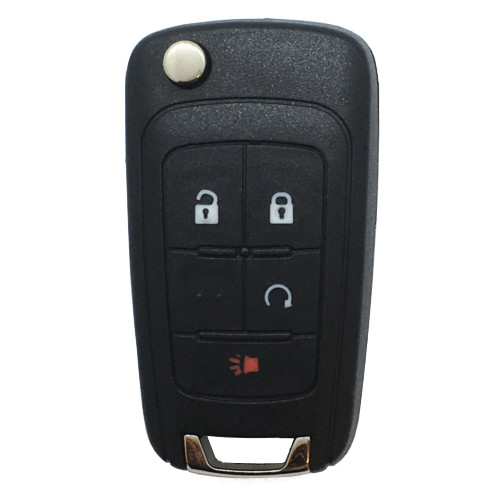

non-PEPS (NON-PROX) flip key
GM027
12 In Stock
Featured
Price (3.5% OFF)
$24.70
$23.84
Buy 10 or more
Save an additional 5%
$22.64
per unit
SKU / Part Number
GM027
Stock Level
12 units
Programming Instructions
Follow these steps to program this key to the vehicle.
<strong>Step-by-Step Programming Instructions:</strong>
<strong>Be sure to review all programming steps before proceeding</strong>
<ol>
<li>Insert the original, already programmed key in the ignition and turn to the ON position without starting the car.</li>
<li>After 10 seconds, turn the key to the OFF position and remove the key.</li>
<li>Within ten seconds, insert the key to be programmed and turn to the ON position without attempting to start the car.</li>
<li>The security light will turn off once the key has been programmed. If your vehicle does not have a security light wait 10 minutes and 45 seconds to make sure the key has been programmed.</li>
<li>Repeat steps 1 through 5 if additional keys are to be programmed.</li>
</ol>
Build Instructions
Internal manufacturing and assembly notes.
Tx: HiTag 2, PCF7941 or PCF7941E
Needs to be unlocked
RECEIVE
PROCEDURE:

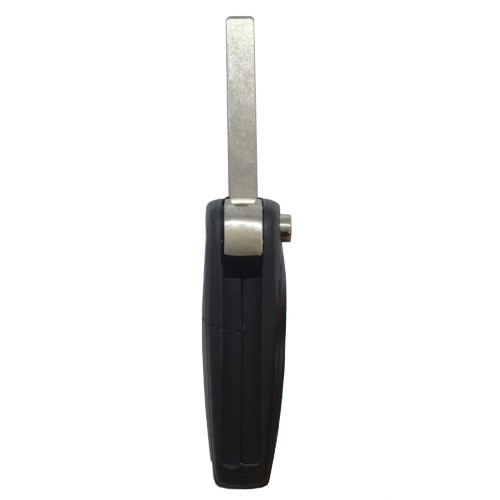

- Visually inspect the emergency blade. Make sure it will lock and release correctly and is UN-CUT.
- Use a remote frequency transmit tester to verify button function.
- Using the iKey Clone - place prox on tool.
- Open KEY CLONE/Click OK to detect device/ click NO to new software
- Select magnifying glass to detect transponder. (May need to toy with position to get it to read.)
- Press the pages button to read out key data.
- The flip key is UNLOCKED if the status bar bottom right starts to increase and populates all the data sections on the left. Under Select Type TP should be PCF7941E or PCF7941, both types of transponder will work.
- Flip key is LOCKED if status bar never moves and data on the left column is blank.
