GM090
5 In Stock
Price (3.5% OFF)
$65.00
$62.73
Buy 10 or more
Save an additional 5%
$59.59
per unit
SKU / Part Number
GM090
Stock Level
5 units
Build Instructions
Internal manufacturing and assembly notes.
RECEIVE

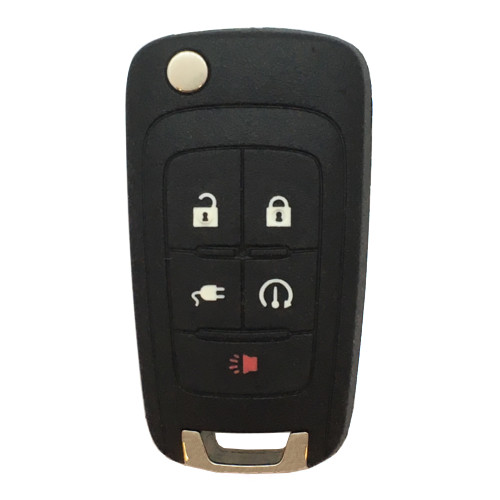

FOR USE WITH GM flip key PEPS and non-PEPS: GM090, GM091.
PROCEDURE:

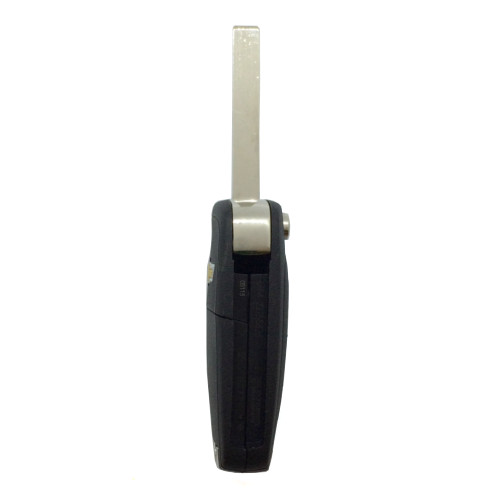

- Visually inspect the emergency blade. Make sure it will lock and release correctly and is UN-CUT.
- Use a remote frequency transmit tester to verify button function.
- Using the iKey Clone - place prox on tool.
- Open KEY CLONE/Click OK to detect device/ click NO to new software
- Select magnifying glass to detect transponder. (May need to toy with position to get it to read.)
- Press the READ TRANSPONDER button
. to read out key data. The flip key is unlocked if the status bar bottom right starts to increase and populates all the data sections on the left. Under Select Type TP should be PCF7952E.
- Flip key is LOCKED if status bar never moves and data on the left is blank. .
